Designed to fit directly on the popular LUMATEK ZEUS LED fixtures frames, the integration of the very valuable FAR-RED photons [701-750] nm harnesses the principles of the EMERSON Enhancement effect, allowing growers to promote stem elongation and leaf expansion during the vegetative and the early days of flowering stages enabling to fill in the grow area. Also, taking advantage of their high efficacy, they can be used at the end of the life cycle to improve the overall photosynthetic efficiency.
With its peak at 730 nm and an output of 13 μmol/s [600-700] nm and 140 μmol/s [701-800] nm, the LUMATEK 50W FAR-RED is a supplemental LED bar tool, to help growers enhance PSII photochemical efficiency and photosynthetic rate when added to the provided Full-Spectrum by the ZEUS range.
This unit has an independent power source and can also be connected in series with daisy-chain link cables. To ensure unit performance, this LED bar has a single input and output socket for the Power Cable or Daisy Chain link Cable, depending on the use of that bar. For this reason, the Power (4 m) and Daisy Chain (1.5 m) cables are sold separately.
Recommended Coverage

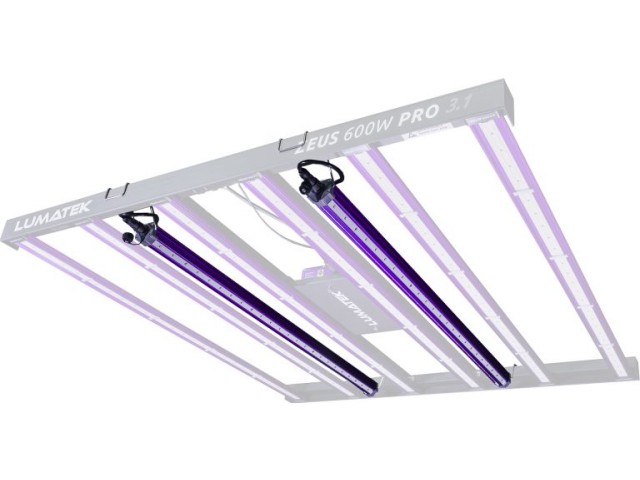

The LUMATEK 50W FAR-RED LED BAR was designed to fit directly into the ZEUS fixtures and when FAR-RED photons are mixed with the produced Full-Spectrum from the ZEUS range, a 10-20% ratio is secured.
Integrate a minimum of 2 units of LUMATEK 50W FAR-RED LED BAR, with:
- ZEUS 465W PRO 2.9 | 1.2 x 1.2 m footprint
- ZEUS 600W PRO 3.1 | 1.5 x 1.5 m footprint
- ZEUS 1000W XTREME CO2 | 1.5 x 1.5 m footprint w/ CO2 Supplement
Integrate a minimum of 3 units of LUMATEK 50W FAR-RED LED BAR, with:
- ZEUS 1000W PRO | 1.5 x 2.0 m footprint
Recommended FAR-RED Application
Always mix the supplemental FAR-RED radiation with the previously mentioned LUMATEK ZEUS Full-Spectrum LED Range.
For a good FAR-RED radiation spread, ensure to install the recommended minimum units, and follow the distance to canopy referred on the Grow Light Strategies table.
FAR-RED can also damage plants. If you notice plant damage, we recommend increasing the distance between fixture and canopy or decrease the FAR-RED radiation delivered by reducing the photoperiodic time.
There is no specific defined photoperiodic time as it will depend on the grower plant morphology preferences.
KEY SPECIFICATIONS
Product code: LUMLED030
ePPF (400 – 750) nm: 155 µmol/s
eEFFICACY (400 – 750) nm: 3.1 µmol /J
INPUT VOLTAGE: 220-240 V AC 50-60 Hz
DRIVER: 50 W, 220-240 V AC 50-60 Hz
INPUT POWER: 50 W (+/- 5%) @230 V AC
WATERPROOF/DUSTPROOF: IP65
LIFE SPAN: L90 > 45000 Hrs
LIGHT DISTRIBUTION: 140°
LIGHT SOURCE: FAR-RED Diodes
DIMENSIONS: 1000 X 48 X 42 mm
WEIGHT: 1.2 Kg
THERMAL MANAGEMENT: Passive Heat Sink
POWER FACTOR: > 0.90
WORKING TEMPERATURE: -10 ° - ±40 °C
WORKING HUMIDITY: 20% - 80% Non-condensing
DIMMABLE: No
DAISY-CHAIN CAPABILITY: Yes (Max. 18 PCS)
FEATURES
- Promotes stem elongation and leaf expansion
- Enhance density of your grow area
- Improve the overall photosynthetic efficiency
- Attachable to all LUMATEK ZEUS Full-Spectrum LED range
- Top efficacy FAR-RED diodes
- Plug and Play
- Internal LED Driver
- Daisy chain connectivity (up to 18 pcs.)
- Passive Cooling
- IP65
Items Included:
1 x 50W FAR-RED LED BAR
2 X METAL HANGING HOOKS
Items Sold Seperately:
[LUMM0084] UV/FR LED Light Bar Power Cable 4 m
[LUMM0085] UV/FR LED Light Bar Daisy Chain Cable 1.5 m
